Trailed hydraulic disc harrow
Home » Products » Farm Implements » Disc Harrow » Trailed hydraulic disc harrow
Share to:

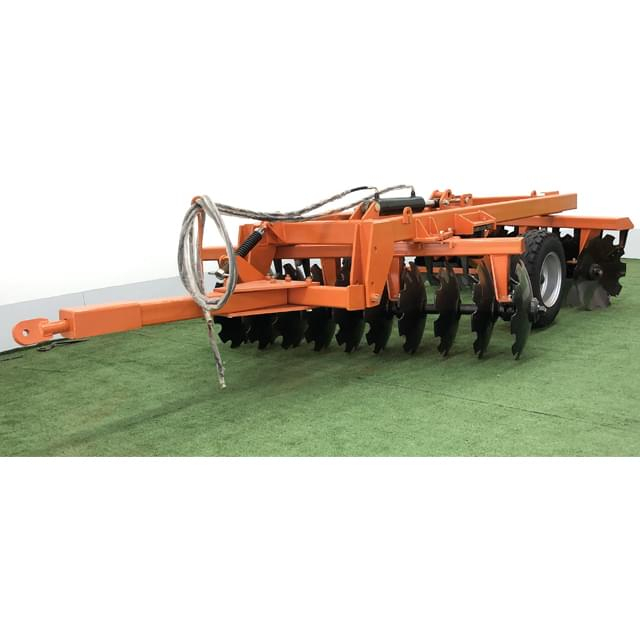

Trailed hydraulic disc harrow

1LYBZ heavy duty hydraulic disc harrow is used in open field working for the superficial ploughing, shattering of clods, preparation of soil for sowing, burial of organic substances & remains.

Quantity:

Product Description

Disc harrow is design according to the Peru STAR disc harrow.


  • Strong harrow shaft and spool.

  • Oil bath harrow bearing assembly

  • Effectively breaks up heavy clods due to sturdy design and weight.



Item

1LYBZ-2.0

1LYBZ-2.2

1LYBZ-2.5

1LYBZ-Y3.0

1LYBZ-3.4

Cutting width (mm)

2000

2200

2500

3000

3400

Cutting depth (mm)

180-220

No of Disc

18

20

24

28

32

Size of disc

26x5mm or 26x6mm

Harrow shaft

38mm round shaft with oil bearing

Tire type

10.0/75-15.3

Weight (kg)

1150

1350

1550

1850

2100

Mounted cat

Trailed

Tractor Power (hp)

≥80

≥90

≥110

≥120

≥140
