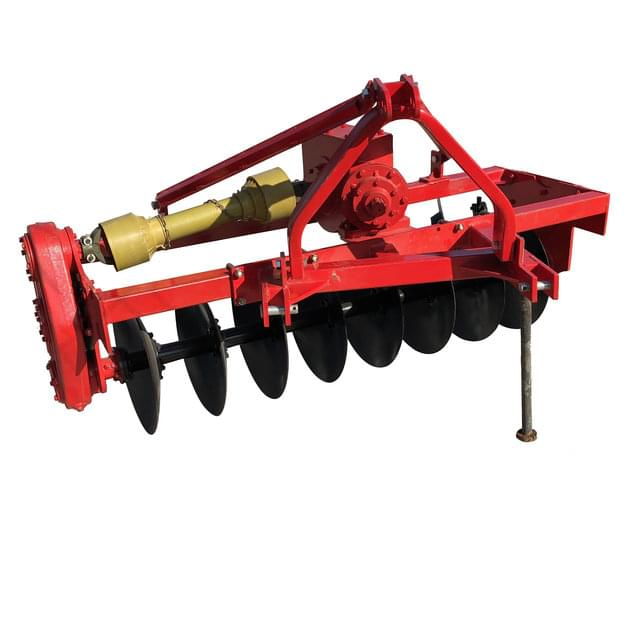

Paddy Land Driven Disc Plough

Paddy land driven disc plough is intermediate gear transmission structure, and the disc blade is rotary working with the support of input power of the tractor's PTO, this mounted driven disc plough is especially suitable for cultivation in Paddy field.

Quantity:

Product Description

Model

1LYQ-320

1LYQ-420

1LYQ-520

1LYQ-622

1LYQ-722

1LYQ-822

Working width (mm)

660

880

1100

1320

1540

1760

Working depth (mm)

120~200






Q'ty of disc

3

4

5

6

7

8

Disc (mm)

510x4

560x5

Speed of input shaft

540-720 (r/min)






Total weight (kg)

220

240

280

325

360

390

Matched power (hp)

15-20

20-30

25-40

40-50

50-70

70-80

Linkage

Cat l

Cat ll
