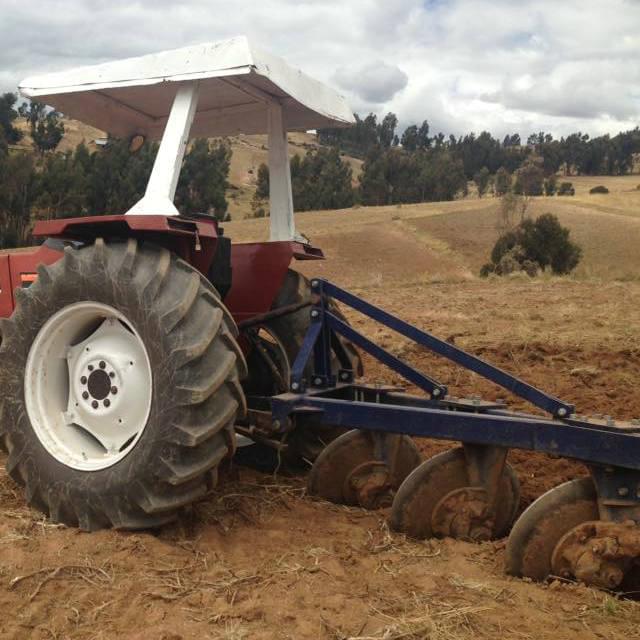

Disc plough is attached to four-wheel tractor; the discs of plough are revolving to furrow the land during operation. The disc plow is especially suitable for land which have weeds, stems and frictional soil with small brick etc.
| Quantity: | |
|---|---|
Product Description

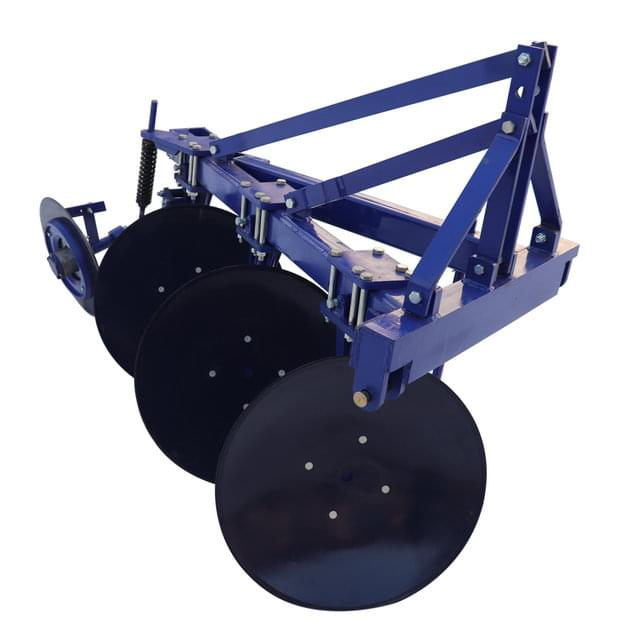

Old shanghai disc plough is special designed for Peru market. Matched with 28x6mm plough disc, the weight is 480kg of one set.
Model | 1LY-320 | 1LY-325 | 1LY-425 | 1LY-525 |
Overall size (L*W*H mm) | 1795*795*1150 | 2210*1120*1430 | 2750*1240*1430 | 3062*1280*1276 |
Working width (m) | 0.6 | 0.9 | 1.0 | 1.25 |
Working depth (mm) | 250~300 | |||
No of disc (pc) | 3 | 3 | 4 | 5 |
Type of disc | 20x4mm | 28x6mm | ||
Total weight (kg) | 190 | 480 | 520 | 600 |
Tractor power (hp) | 30 | 50 | 90 | 120 |
Mounted Cat | Cat II | |||
