Lemken disc blade 3490467
Home » Products » Disc Blade » Lemken disc blade 3490467
Share to:

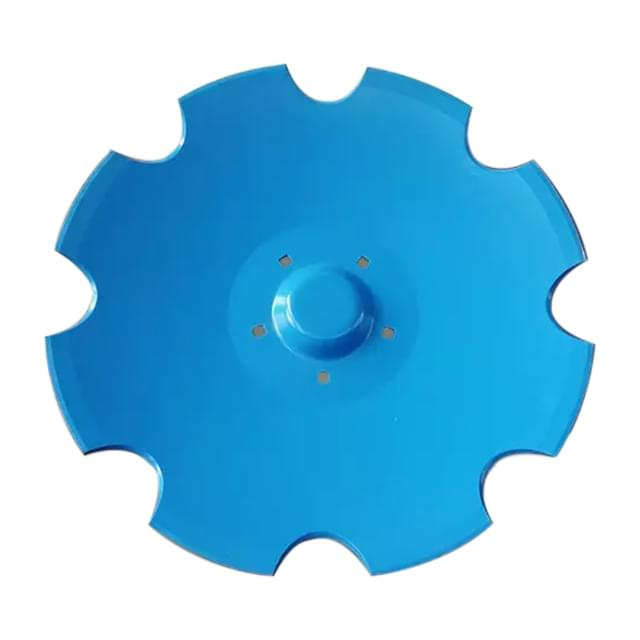

Lemken disc blade 3490467

Disc Blades are extensively used for agricultural equipment, such as disc harrow & disc plough. It offered in 65Mn spring Steel (high-carbon steel) material and 30MnB Boron steel in smooth type and notched type options.

Quantity:

Product Description

Disc blade


Disc Blades are extensively used for agricultural equipment, such as disc harrow & disc plough. It offered in 65Mn spring Steel (high-carbon steel) material and 30MnB Boron steel in smooth type and notched type options. Offered in different diameters from 14" to 36" and thicknesses from 3mm to 12mm. Disc Blades are carefully heat treated to engage with the rocks, boulders and other obstructions. These feature superior corrosion resistance with less maintenance requirements. The durable finish also results in providing longer service life of disc blades as well as more wear resistance while being used on soil.


Features:

Cooperation with Lingyuan steel factory to make sure the consistant quality of material.

High Carbon disc blade hardness: 38 - 44HRC. In order to keep the toughness and wear ability of disc blade.

30MnB boron disc blade, hardness 48-52HRC. Pass steel ball testing.

Featuring superior corrosion resistance with less maintenance requirements


Dimension of disc blade

Diameter (D)

Concavity (H)

Thickness of disc

R

Sharpening

MM

INCH

MM

MM

MM


255

10

12

3

460

510

540

570

600

610

630

650

685

750

900

External / Internal

305

12

19

3

330

13

25

3

355

14

38

3

410

15

38~50

3

430

17

57

3/4

460

18

38~60

3/4

480

19

57

3/4

510

20

44~63

3;4;5

535

21

63

3;4;5

560

22

60~85

4;5;6

585

23

75~90

4;5;6

610

24

75~95

4;5;6

660

26

86~115

5;6;7;8

710

28

100~130

5;6;7;8

760

30

120~135

6;7;8;10;12


Disc Blade Testing

Here is the Boron disc blade testing video.
