Product Description

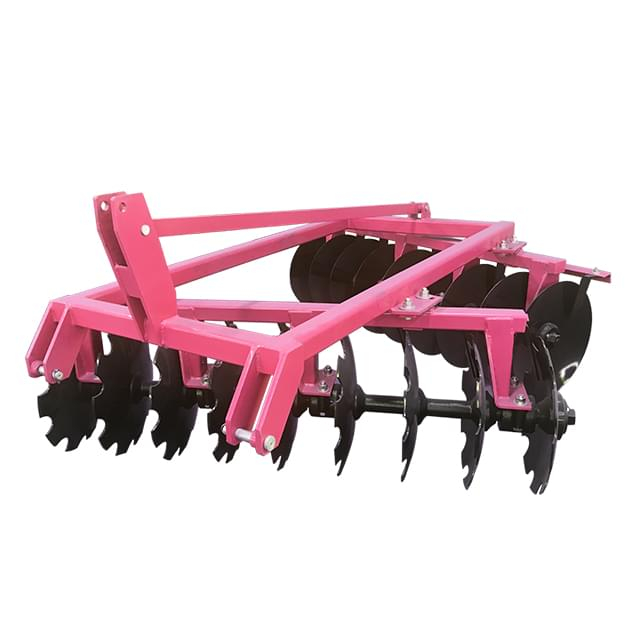

Mounted offset disc harrow
Mounted offset disc harrow is used in open field working for the superficial ploughing, for the shattering of clods, preparation of soil for sowing, burial of organic matter and remains.
• Notched and round harrow disc, easily chopped straw and earth levelling.
• High quality 65Mn disc blade，HRC：40-44.
• Easily attached and mounted.
Model | Unit | 1BJX-1.6 | 1BJX-1.8 | 1BJX-2.0 | 1BJX-2.2 | 1BJX-2.4 | 1BJX-2.5 |
Cutting width | mm | 1600 | 1800 | 2000 | 2200 | 2400 | 2500 |
Cutting depth | mm | 140 | |||||
Gang bolt | mm | 32 square shaft | |||||
Disc blade | mm | 560x4 | |||||
No of discs | 14 | 16 | 18 | 20 | 22 | 24 | |
Total weight | kg | 350 | 380 | 420 | 470 | 540 | 650 |
Tractor power | hp | 30 | 40 | 50 | 60 | 70 | 80 |
Mounted cat | Cat I | Cat II | |||||
