10+10 Disc harrow

Mounted Offset Disc harrow is used in open field working for the superficial ploughing, for the shattering of clods, preparation of soil for sowing, burial of organic matter and remains.

Quantity:

Product Description

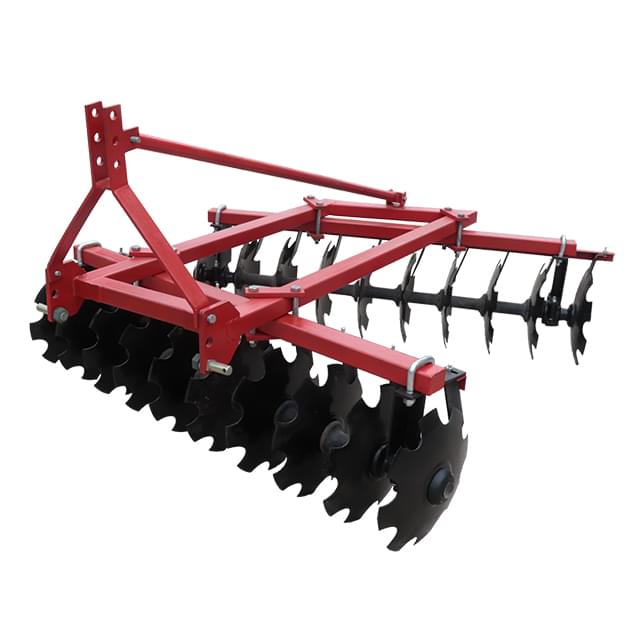

Mounted offset disc harrow

Mounted offset disc harrow is used in open field working for the superficial ploughing, for the shattering of clods, preparation of soil for sowing, burial of organic matter and remains.

• Notched and round harrow disc, easily chopped straw and earth levelling.

• High quality 65Mn disc blade,HRC:40-44.

• Easily attached and mounted.


Model

Unit

1BJX-1.6

1BJX-1.8

1BJX-2.0

1BJX-2.2

1BJX-2.4

1BJX-2.5

Cutting width

mm

1600

1800

2000

2200

2400

2500

Cutting depth

mm

140

Gang bolt

mm

32 square shaft

Disc blade

mm

560x4

No of discs


14

16

18

20

22

24

Total weight

kg

350

380

420

470

540

650

Tractor power

hp

30

40

50

60

70

80

Mounted cat


Cat I

Cat II
